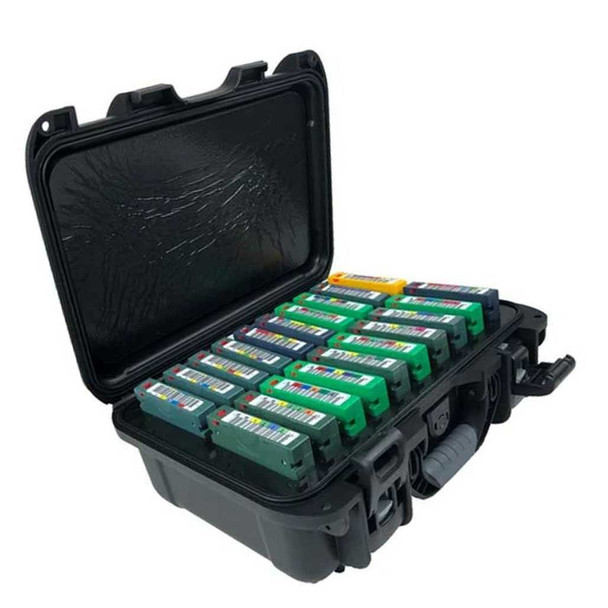

TeraTurtle LTO 20 Tape Capacity for tapes with no individual plastic case 07-519005

The Teraturtle 519 LTO case has 2 options: this one, which is a 20 LTO tape capacity case with tapes not in their individual plastic cases (07-519005), and the 20 LTO tape capacity case with tapes in their individual plastic cases (07-519006). The TeraTurtle 519 LTO 20 tape capacity case is waterproof and dustproof, and is designed to protect LTO tapes from all conditions that can affect them and, therefore, the quality and longevity of the data.

TeraTurtles are designed for those users who do not want unsealed foam to hold the tapes firmly in the cases. This design has a plastic guide, and any foam used on the top and bottom of the case is completely coated in a thin layer of plastic to prevent dust and foam from shedding during long-term use. They have stainless steel and plastic double-movement latches that prevent accidental opening for added protection. There are options for two padlocks or security seals to prevent tampering with the contents. These TeraTurtle cases have a lifetime manufacturing warranty.

Features:

• Part Number: 07-519005
• Weight: 2kg's / 4.4 lbs
• Inside Dimensions: 35.1cm x 23.7cm x 15.8cm / 13.8" x 9.3" x 6.2"
• Outside Dimensions: 40.2cm x 31.5cm x 17.3cm / 15.8" x 12.4" x 6.8"
• Carton Dimensions: 40.7cm x 33.1cm x 17.8cm / 16" x 13" x 7"
• Waterproof: Yes
• Fireproof: No

All TeraTurtle cases are heavy-duty and provide protection against the main problems that cause data loss:

• physical damage from impact
• tape distortion from wound-in debris
• fast and large changes in temperature and humidity
• water and precipitation

Certifications
Waterproof  IPX7
Dustproof  IP6X
Impact  ATA 300
Drop Test  ASTM D-4169 CC-18
Vibration  STM D-4169 DC-18
Rainfall  ASTM D-4169 DCc-18
Immersion  MIL-STD-810F

Descriptions of Tests
ATA Specification 300 Category 1
Airline transport container suitable for a minimum of 100 airline trips
Impact Resistance Test; samples were exposed to impact using a bar weighing 13.2lbs with a hemispherical end of 3.2cm. The bar was dropped with its longitudinal axis vertical onto each sample’s weakest point from a height of 0.5m. Samples were conditioned at -20°C before impact exposure.

ASTM D-4169 DC-18
Level 1 Schedule A Handling (Manual)
Drop tests - a series of drops on each edge, corner and face of the case from a height of no less than 48cm(19”) and with loads of 6.8-31.8kg(15-70lbs) determined by case size. Samples were conditioned at ambient lab conditions and then at -28°C and +60°C for a minimum of 3 hours at each temperature.

ASTM D-4169 DC-18
Level 1, Schedule F loose load vibration
Vibration - The cases are tested using test method D-999 to determine the ability to withstand the repetitive shocks that occur during the transportation of loose loads.

ASTM D-4169 DC-18
Level 1, Schedule H Environmental Hazard Rainfall
Simulated rainfall for 2 hours at a rate of 10cm/hr (4”). Samples were conditioned to -20 degrees C and +52 degrees C.

MIL-STD-810F
Method 512.4
Immersion - The case is submerged in a basin of water to a depth of 1 meter (3.28 ft) to the topmost part of the case for 30 minutes. The case is heated to 10 degrees F above the water temperature.
IP 67 ingress protection
6- Total protection from dust
7- Protected against the effects of immersion between 15cm (5.9”) and 1m (39.37”)
