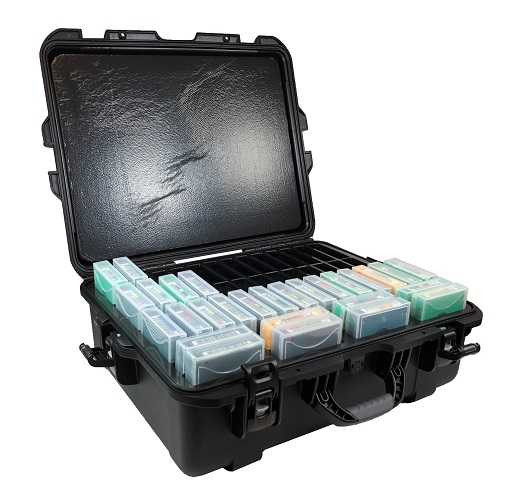

TeraTurtle LTO 50 Tape Capacity Case 07-549005

The Turtle TeraTurtle LTO case 07-549005 has a capacity of 50 x LTO tapes with or without their plastic individual cases. TeraTurtles are designed for those users not wanting unsealed foam to hold the tapes firmly in the cases which can cause foam shed over time and with constant use. The 549 Teraturtle cases have a thin film of plastic over the foam top and bottom of the case and plastic divider slots for each of the tapes.

• Waterproof
• LTO, 3592 and T10k tapes
• Superior cushioning and no exposed foam or debris generating agents
• Individual slots for each tape
• Airtight
• ATA Impact certified
• Stainless steel hardware
• Double movement latches prevent accidental opening
• Double padlockable
• Lifetime warranty

Certifications
Waterproof  IPX7
Dustproof  IP6X
Impact  ATA 300
Drop Test  ASTM D-4169 DC-18
Vibration  ASTM D-4169 DC-18
Rainfall  ASTM D-4169 DC-18
Immersion  MIL-STD-810F

Descriptions of Tests (Impact - ATA 300)
ATA Specification 300 Category 1
Airline transport container suitable for a minimum of 100 airline trips
Impact Resistance Test; samples were exposed to impact using a bar weighing 13.2lbs with a hemispherical end of 3.2cm. Bar was dropped with its longitudinal axis vertical on to each sample’s weakest point from a height of 0.5m. Samples were conditioned to a temperature of -20°C before impact exposure.

ASTM D-4169 DC-18 (Drop Test)
Level 1 Schedule A Handling (Manual)
Drop tests - a series of drops on each edge, corner and face of the case from a height of no less than 48cm(19”) and with loads of 6.8-31.8kg(15-70lbs) determined by case size. Samples were conditioned at lab ambient conditions and then temperatures of -28°C and +60°C for a minimum of 3 hours at each condition.

ASTM D-4169 DC-18 (Vibration Test)
Level 1, Schedule F loose load vibration
Vibration - The cases are tested using test method D-999 to determine the ability to withstand the repetitive shocks occurred during transportation of loose loads.

ASTM D-4169 DC-18 (Rainfall Test)
Level 1, Schedule H Environmental Hazard Rainfall
Simulated rainfall for 2hrs at a rate of 10cm/hr (4”). Samples were conditioned to -20 degrees C and +52 degrees C.

MIL-STD-810F (Immersion)
Method 512.4
Immersion - The case is submerged in a basin of water to a depth of 1 meter (3.28 ft) to the top most part of the case for 30 minutes. The case is heated to 10 degrees F higher than the temperature of the water.
IP 67 ingress protection
6 - Total protection from dust
7 - Protected against the effects of immersion between 15cm (5.9”) and 1m (39.37”)
