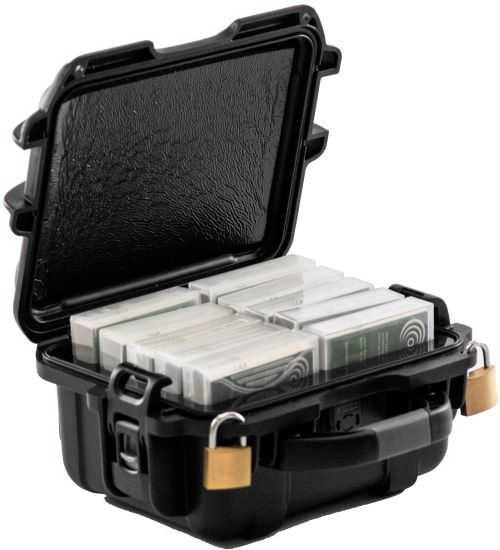

TeraTurtle LTO 10 Tape Capacity Case 07-509003

The TeraTurtle LTO case 07-509003 has a capacity of 10 x LTO tapes with their plastic individual cases. TeraTurtles are designed for those users not wanting unsealed foam, so the foam is sealed by a thin plastic film top and bottom to prevent dust and foam shed from long term use. They still hold the tapes firmly in the cases using plastic guide slots for each tape and the sealed foam top and bottom. These TeraTurtle 10 x LTO tape capacity cases have stainless steel, double movement latches which prevents accidental opening for added protection. There are options for two padlocks or security seals which ensures there is no tampering with the contents. These TeraTurtle cases have a lifetime warranty.

Specifications

• Part Number: 07-509003
• Weight: 3.3 lbs/1.5 kgs
• Inside Dimensions: 23.90cm x 18.8cm x 14cm or 9.4" x 7.4" x 5.5"
• Outside Dimensions: 31.8cm x 25.7cm x 15.3cm or 12,5" X 10.1" X 6"
• Carton Dimensions: 33cm x 28cm x 17.8cm or 13" X 11" X 7"
• Waterproof: Yes
• Fireproof: No

Certifications
Waterproof  IPX7
Dustproof  IP6X
Impact  ATA 300
Drop Test  ASTM D-4169 CC-18
Vibration  STM D-4169 DC-18
Rainfall  ASTM D-4169 DCc-18
Immersion  MIL-STD-810F

Descriptions of Tests
ATA Specification 300 Category 1
Airline transport container suitable for a minimum of 100 airline trips
Impact Resistance Test; samples were exposed to impact using a bar weighing 13.2lbs with a hemispherical end of 3.2cm. The bar was dropped with its longitudinal axis vertical onto each sample’s weakest point from a height of 0.5m. Samples were conditioned at -20°C before impact exposure.

ASTM D-4169 DC-18
Level 1 Schedule A Handling (Manual)
Drop tests - a series of drops on each edge, corner and face of the case from a height of no less than 48cm(19”) and with loads of 6.8-31.8kg(15-70lbs) determined by case size. Samples were conditioned at ambient lab conditions and then at -28°C and +60°C for a minimum of 3 hours at each temperature.

ASTM D-4169 DC-18
Level 1, Schedule F loose load vibration
Vibration - The cases are tested using test method D-999 to determine the ability to withstand the repetitive shocks that occur during the transportation of loose loads.

ASTM D-4169 DC-18
Level 1, Schedule H Environmental Hazard Rainfall
Simulated rainfall for 2 hours at a rate of 10cm/hr (4”). Samples were conditioned to -20 degrees C and +52 degrees C.

MIL-STD-810F
Method 512.4
Immersion - The case is submerged in a basin of water to a depth of 1 meter (3.28 ft) to the topmost part of the case for 30 minutes. The case is heated to 10 degrees F above the water temperature.
IP 67 ingress protection
6- Total protection from dust
7- Protected against the effects of immersion between 15cm (5.9”) and 1m (39.37”)
